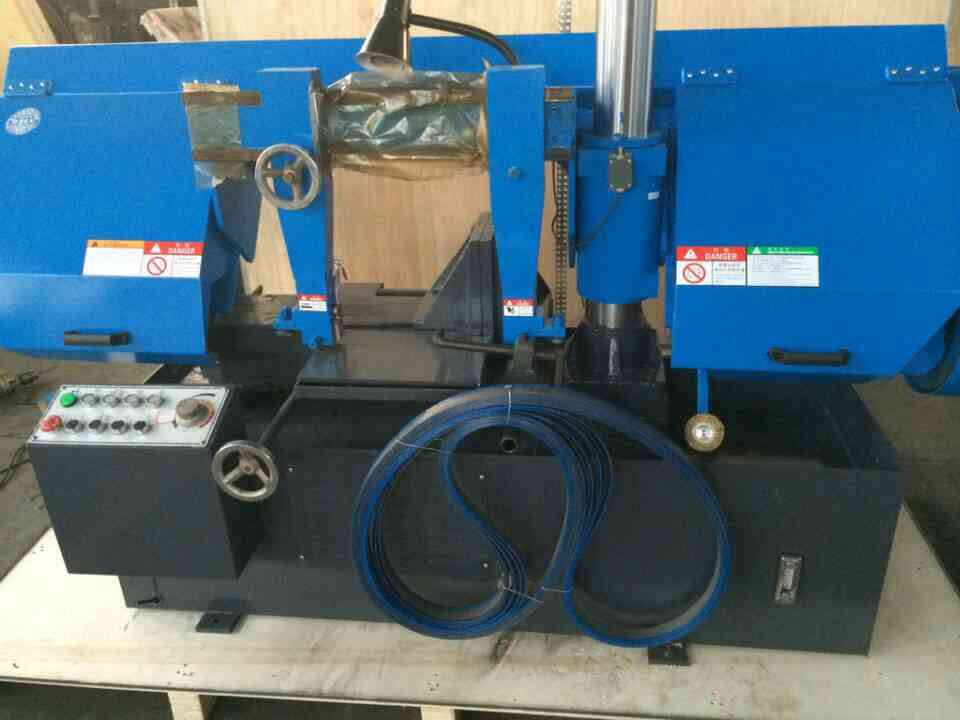

Double Column Metal Band Saw Machine

Double Column Metal Band Saw Machine

  • Product description: Double Column Metal Band Saw Machine
  • INQUIRY

Quick Details:


Maximum Cutting Capacity

1) Range: 300mm to 650mm
2) Square: 300*500mm to 650*700mm
3) Rectangle:300*500mm to 650*700mm
3 Motor Output
1) Blade: 3kw to 7.5kw
2) Hydraulic:0.75kw to 1.5kw
3) Coolant: 0.75kw to 1.5kw
4 Vise Control:hydraulic
5 N.W /G.W:1000KGS/1050KGS to 3190KGS/3290KGS
6 Packing Size(L*W*H):2150*1220*1530mm to 3400*1410*1850mm
7 Standard Accessories:
1)Bi-metal saw blades
2)Tool box
3)Manual instruction
4)Feeding table
8) Application:Cutting of Steel Tubes/Plates

Features for Metal Cutting Saw:

1) Full-auto
2) Touch screen type
3) Blade tensioning: hydraulic
4) Blade breakage protection

5) Limit switch for cut power off while the cover opened in case


Parameter for Metal Cutting Saw:

Item NO: SD4230/50 SD4235/50 SD4240/50 SD4250 SD4260/70 SD4265
Maximum Cutting Capacity Round(mm) 300 350 400 500 600 650
Square(mm) 300*500 350*500 400*500 500*500 600*700mm 650*700mm
Rectangle(mm) 300*500 350*500 400*500 500*500 600*700mm 650*700mm
Saw blade Speed(m/min) 22/41/59/85 32/49/64 34/60/77 24/38/57/78/97 18/35/55 20/40/62
Sizem/min 4000*34*1.1 4720*34*1.1 4900*41*1.3 5470*41*1.3 7170*54*1.6 6730*54*1.6
Tension manual manual manual hydraulic hydraulic hydraulic
Guide TINGS CARBIDE
Cleaning brush
Motor Output Saw blade(KW) 3 4 4 5.5 7.5 6
Hydraulic(KW) 0.75 1.5 1.5 1.5 1.5 1.5
Coolant(KW) 0.75 0.75 1.5 1.5 1.5 1.5
Tank Capacity Hydraulic oil(L) 40 40 40 45 43 45
Coolant(L) 60 60 60 60 60 60
Feeding Mode manual manual manual auto auto auto
Length(M) 1 1 1 1 1.5 1.5
Vise Control hydraulic
N.W/G.W(KGS) 1000/1050 1300/1350 1350/1450 1800/1900 3190/3290 2880/2930KGS
Packing Size(L*W*H)mm 2150*1220
*1530
2400*1200
*1700
2470*1150
*1850
2650*1350
*2150
3400*1410
*1850
3200*1780
*2340
Standard Accessories Bi-metal saw blades,tool box,manual instruction,feeding table


Machine #4228 & #4235

#4228 & #4235  mainly used for sawing carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless steel, acid steel and other metal materials.

Features of Metal Band Saw Machine #4228 & #4235

1.Cutting speed hydraulic control, stepless speed regulation
2. Better Guide Block Structure, long life of saw blade
3. Double column structure, smooth operation
4. Cutting stability, high precision
5. Work clamping adopts hydraulic clamping, convenient operation
6. Can be customized to three hydraulic clamping device

Specification of Metal Band Saw Machine #4228 & #4235

Model No. Unit SMC4228 SMC4235
Cutting capacity mm 280-280*280 350-350*350
Blade size mm 3505*34*1.1 4115*34*1.1
Blade speed mm/mm 274569 274569
Clamping type hydraulic hydraulic
Main motor power kw 2.2 3
Hydraulic Motor power kw 0.75 0.75
Coolant pump power kw 0.04 0.04
Dimension mm 1800*800*1400 2000*2000*1400

Packaging of Metal Band Saw Machine #4228 & #4235
