  • Handheld laser marker / laser engraver

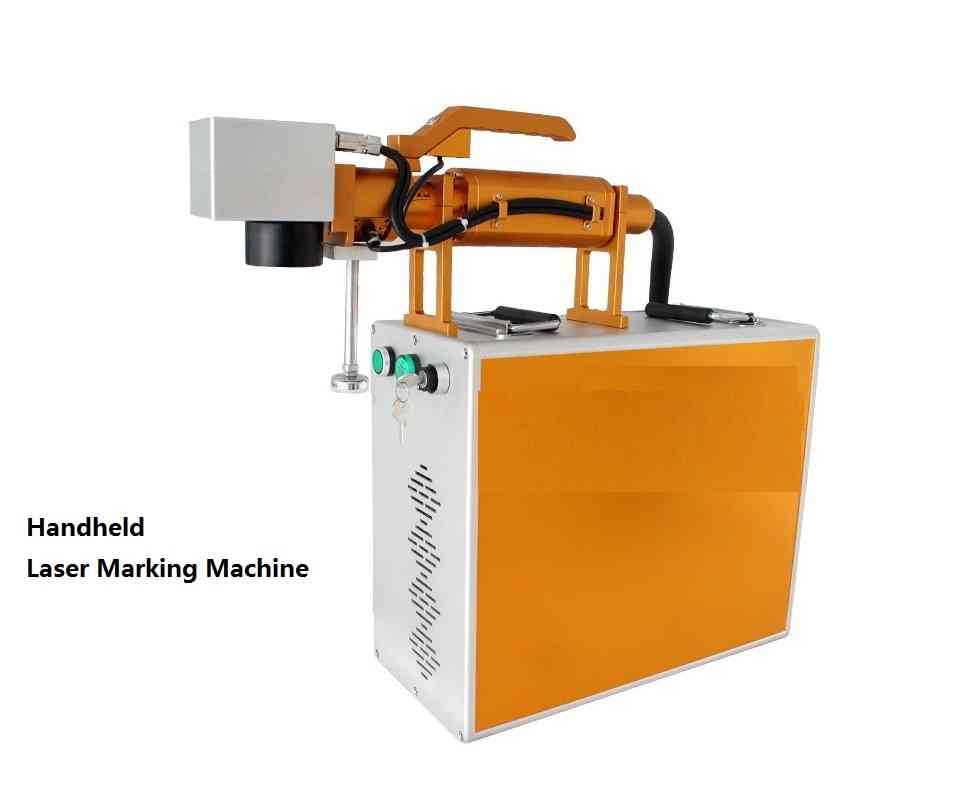

Handheld laser marker / laser engraver

Handheld laser marker / laser engraver

  • Certificate: CE/ISO/FDA
  • Power: 10W-50W
  • Computer: not included
  • Product description: Handheld laser marker / laser engraver
  • INQUIRY

Quick Details:

Model SHL-10/20W/30W/50W
Average output power

10W/20W/30W/50W

Laser wavelength 1064nm
Power adjust range 10-100%
Repetition frequency 20-80KHz
Output beam quality 1.4-1.8m2
Divergence Angle 0.3mrad
Electro-optic conversion rate 30%
Marking style Stationary or mobile marking
Marking line depth 0.01-0.2mm
Minimum gathering spot 0.01mm
Minimum character 0.1mm
Repeated precision 0.002mm
Marking speed 7000mm/s
Marking format all kinds of formats
Standard character type Vector type and bitmap graphics, text
Operating system
WIN7 ,PLT,PCX,DXF,BMP,SHX,TTF
Marking scope 50×50/100 × 100/150 × 150mm
Product Size 550mm × 900mm × 1200mm
Power supply 100-240v,single phase, 500w

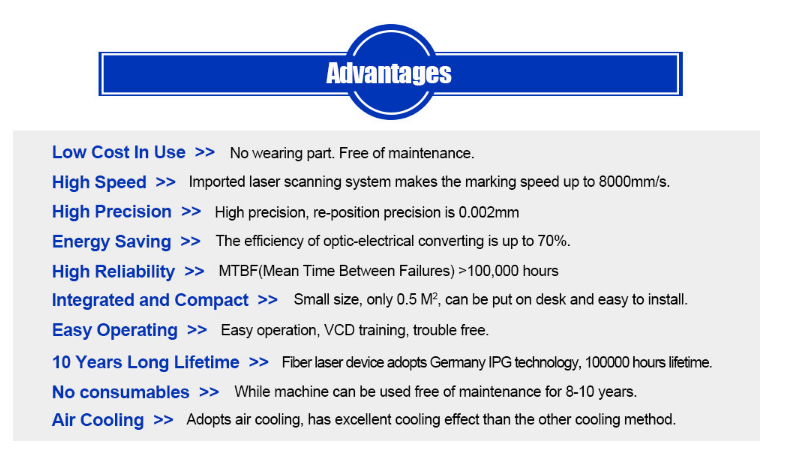

Advantages:

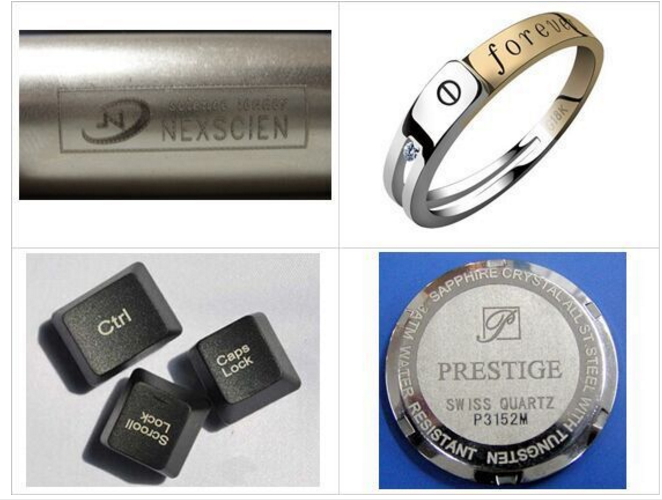

Application:
