Metallic Coated Steel

  • Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)
  • Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)
  • Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)
Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)

Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)

  • Building materials: exterior&interior
  • Accessories: shutter, signboard
  • Product description: Shanghai Luthan offer different finishes of prepainted galvanized steel to satisfy all your needs.
  • INQUIRY
Specification of Prepainted Galvanized Steel:

1) Thickness: 0.3mm-1.2mm
2) Zinc Coating: 80g/m2-100g/m2
3) Painting Thickness: 25mic/5-10mic
4) Standard Width: 914mm, 1000mm, 1200mm, 1270mm or by request.
5) Coil weight: by request.
6) ID: 508mm/610mm
7) Color: RAL, or other series
8) Coating sustains 180 degree bending



Application of Prepainted Galvanized Steel Coil (PPGI):

Mainly used in Roofing, Construction,Electric Appliance Panel,etc



Packing:

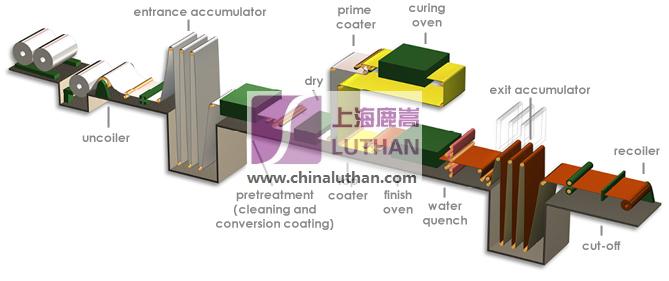

Production Line of Prepainted Galvanized Steel Coil:

A typical Horizontal PPGI Line would comprise with the following steps:

Process Flow Diagram:

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.

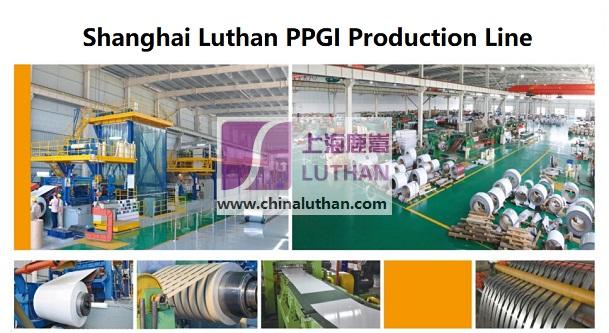

Shanghai Luthan is an international manufacturer and supplier for Prepainted Galvanized Steel Coil. We have two prepainted lines based on galvanized steel coil. Our monthly output for each line is approxiamtely 5,000 ton.
